Product Description

• Versatile Application:Suitable for a range of environments, from living rooms to bathrooms and gardens.

• Thermostatic Control:Features a built-in thermostat to maintain a consistent temperature, enhancing comfort.

• PTC Fan Heating:PTC fan technology ensures even heat distribution and rapid air flow for optimal heating performance.

• Dc Heater|350W High Power:Delivers robust heating with a 350W power output, ensuring quick and efficient warmth.

• Portable Design:Lightweight and compact, this heater is ideal for desktop or freestanding use in various settings.



  1. Introduction:

  • Fan Input Voltage: 24V DC

  • HeaterInput Voltage:220V

  • Power: 350W±25%

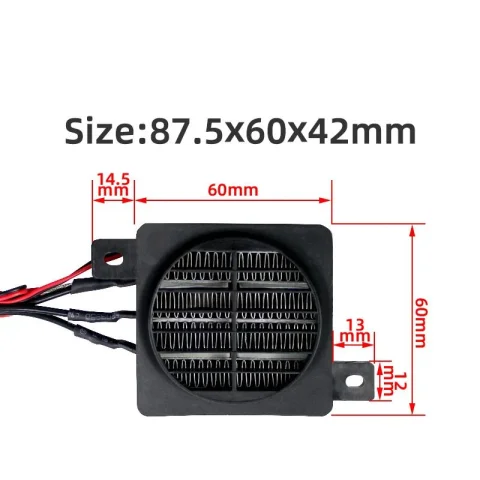

  • Size: 87.5*60*42mm（Includes mounting holes）

  • Mounting hole size: φ4mm

  • Heat material: PTC Thermistor

  • Heat methods: heat radiation by air flow

  • Lead wire: high temperature line

  • The length of lead wires : 200mm

  • The length of bare wires : 10mm

  • Surface insulate: No

  • Use: this PTC part is used for heating air or solid. the PTC meterial has a characteristic that it is constant temperature on the surface.

  • Notice:the power is reference value. the better the dissipation is, the bigger the power is.In different working environments, power will have a plus or minus 20% tolerance.
    If you have strict requirements on power accuracy,this product is not suitable for you.

  2. Advantage:

  • Safety

  • Heat up quickly, long service life.

  • Self-control temperature

  • Small sound

  3. Application:

  • Equipment

  • Electric Heater

  • General electric appliance

  • Air curtain machine

  PTC Insulative corrugated heater(PTC Air heater insulator,PTC Heater for warm air-conditioner) is a kind of large power Non-Surface-Electrified PTC heater with wind blowing.PTC element is fixed in aluminium tube and keep insulated with the aluminium tube.
